How to configure an Iframe Widget

Last updated: June 1, 2023

The Iframe Widget allows embedding an element from an external website onto a Wide Narrow Dashboard.

Prerequisite: A prepared HTML of the element you wish to embed.



Add the widget to the Dashboard

1. Go to the Dashboard overview page.
2. Click on Widgets and then New Widget to create a shared Dashboard Widget.
   OR, to create a widget only available for a specific Dashboard:
   Click on the More button (three dots) on the Dashboard card and select Manage widgets.
3. Click the blue Add/New Widget button and select an area to position your widget.
4. Click the Iframe tab in the top menu and then the Add button on the Iframe Widget.

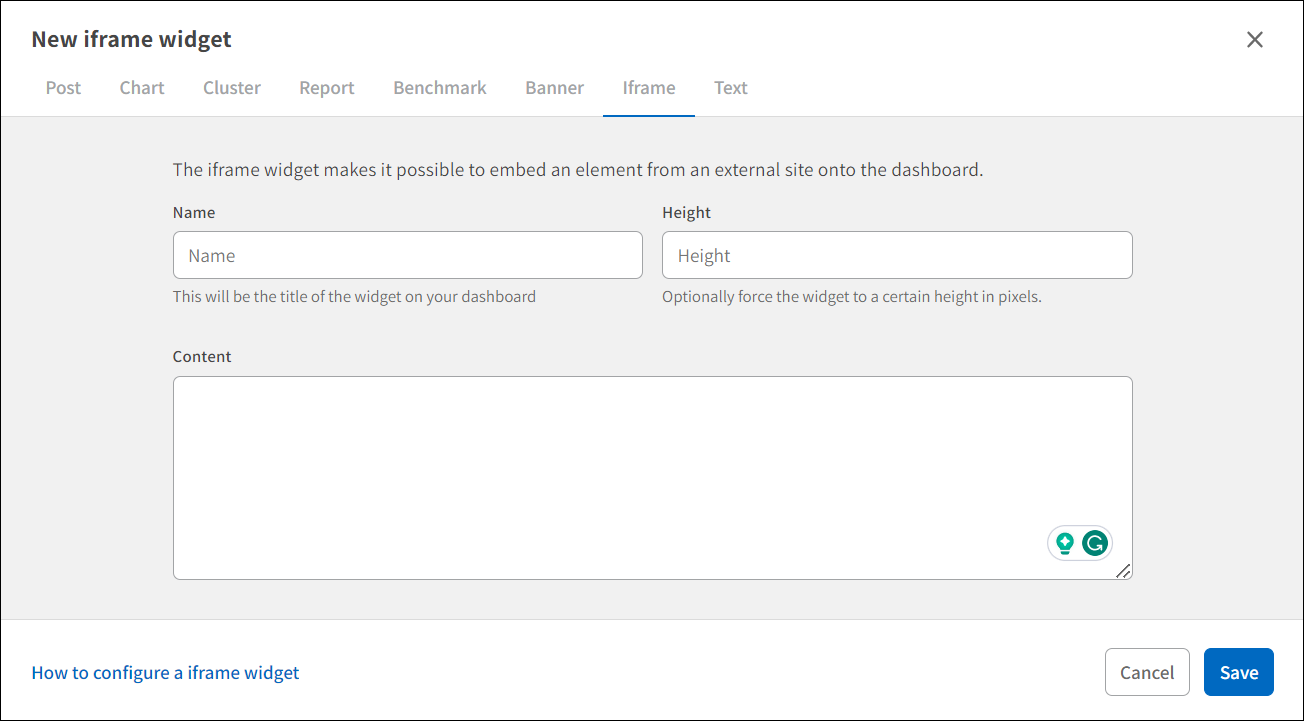

Configuring the widget

1. Name: Type the name of the widget. The name will be the title of the widget on the Dashboard. Choose a name that clearly explains the widget.
2. Content: Paste the HTML code provided by the iframe provider (with the content you want to embed).
3. Height: Leave the field empty if the Iframe HTML code includes height. Optionally force the widget to a certain height in pixels. Test and review to make sure the iframe will look as expected.
   Recommended height values for Google Trend and Power BI:


   • Google Trend: For a Google Trend chart, we recommend a 500-pixel height. Start testing with 500 or 400 and check the result.


   • Power BI: For iframes from Power BI, we recommend leaving the height option empty, and in the iframe code provided by Power BI, set width ="100%" height="360"


4. Content: Paste the HTML code provided by the iframe provider (with the content you want to embed).
5. Press Save. The widget is now available to review on the Dashboard.

User Access:
All Superusers can create and manage Dashboards. Only Dashboard owners can add and manage widgets to a Dashboard.
